In this example we will see a Tab application displaying several Dashboards.
Dashboard Applications
In this example, we will use other applications that will be displayed in the Tabs. They will be:
General Sales Dashboard: https://www.scriptcase.net/samples/php-container-dashboard/sales-dashboard/
Employees Dashboard by Region: https://www.scriptcase.net/samples/php-container-dashboard/dashboard-employee-region/
Links between Applications on the Dashboard: https://www.scriptcase.net/samples/php-container-dashboard/links-dashboard/
Sales Dashboard by Region: https://www.scriptcase.com.br/exemplos/menu-php/abas-com-dashboards/
Creating the Tab application
The Tab application is used to display several applications in sequence, and is very similar to a Menu application.
1 – Create a new Tab-type application.
2 – In the item “Folder configuration” we will create the tabs that will be viewed in the application.
3 – To add a new Tab, in the Label property, type the display name of the Tab and click on the “Add” button.
4 – Repeat the procedure for the number of applications that will be displayed on the tabs.
5 – Now we need to inform which applications will be opened in each of the tabs. Click on the “Application Configuration” item.
6 – With the first folder selected, click the Add button.
7 – Choose the desired application and click on the Proceed button.
8 – Enter the desired parameters and click the Save button.
9 – Repeat the procedure for the following Folders / Tabs, selecting the other dashboard applications.

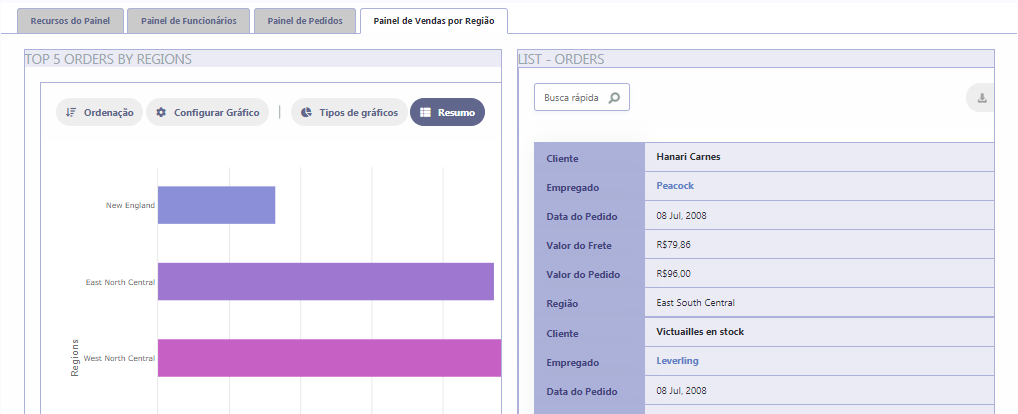

10 – To finish Run the application.
